PRODUCT PROCESS

Slitting

Finished product is
steel coil

1. 400mm slitting line 12 sets
2. 500mm slitting line 2 sets
3. 650mm slitting line 1 sets
4. 750mm slitting line 1 sets
5. 4 feet slitting line 4 sets
6. 5 feet slitting line 1set

Cutting

Cut the coil into
the appropriate length.

1. 800mm fly- shear cut- to- length line 1 set
2. 4 feet fly- shear cut- to- length line 1 set
3. 1M automatic shear cut- to- length line 1 sets
4. 2 feet automatic shear cut- to- length line 4 set
5. 4 feet automatic shear cut- to- length line 1 set

Steel Coil

/

Steel File

PRODUCT SPECIFICATION

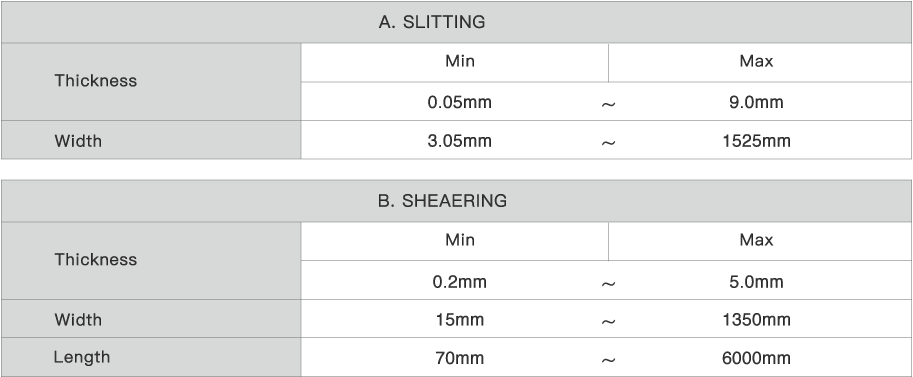

專業分條及切片代工規格

分條寬度公差

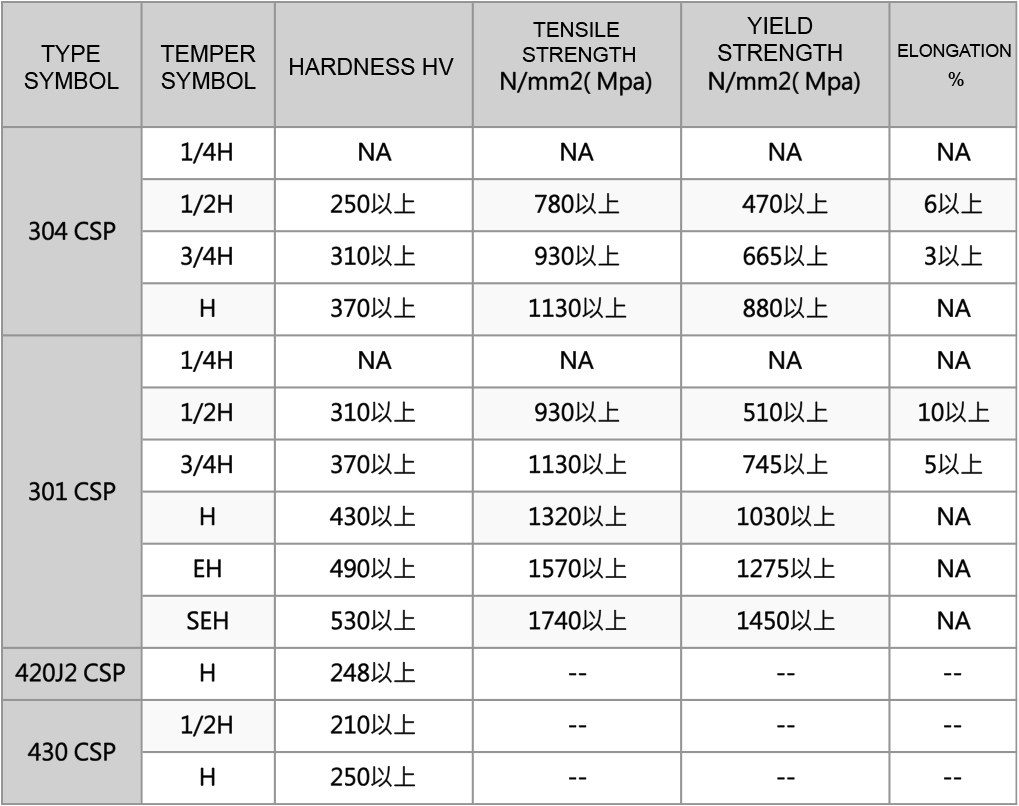

軟板之機械特性

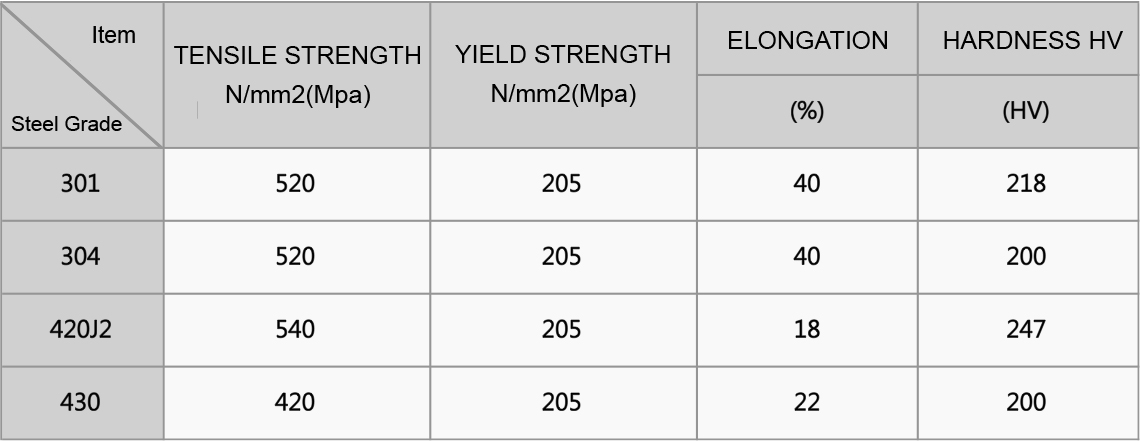

301 / 304 / 420J2 / 430 Steel Specification

CHENICAL COMPOSITION

ASTM Specification

JIS Specification
